Interface standard Type-1/Type-2/GB/T
Output current 16~32A
Output power 7 kW`22kW
Input voltage 220 - 380V

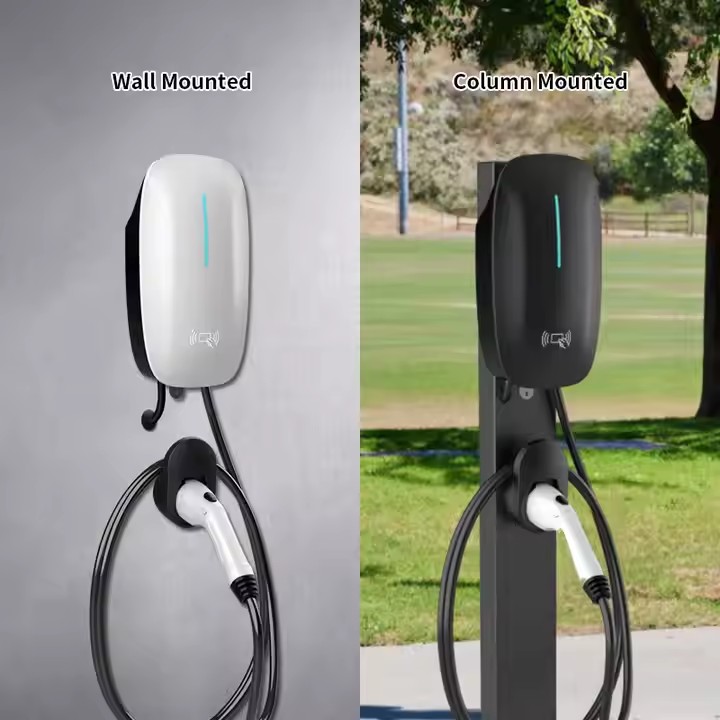

Installation Method Wall-mounted/Column
Start-up and billing method APP(QRCode),Plug &Charge,RFID
Grid frequency 50Hz±10Hz
IP protection level IP67
OCPP OCPP 1.6J/1.5J
USB Upgrade, download
RS485 Point to Point communication
Insulation detection AC+ and PE, AC- and PE impedance
Connection temperature Plug temperature detection
AC leakage RCD
